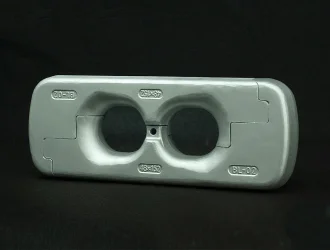

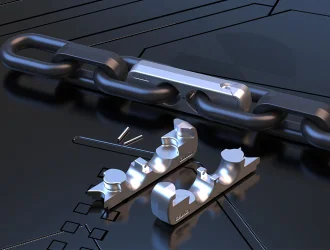

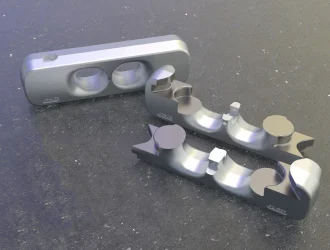

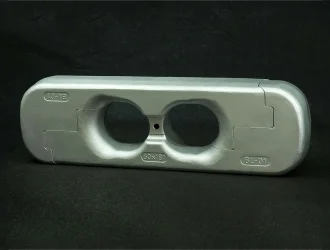

Vertical Chain Links for Mining Chains S Forged
| Product Features: | |
| Application: | Link mining chain,Scraper accessories |
| Material: | Manganese steel |
| Process: | Forging |
| Customization: | Acceptable |
| Suitable: | Din22258-3，ISO9001 |
Description
| Size dXp | W max | P | b min | C max | L max | Breaking(KN) | Fatigue strength | Weight(kg) |
| 42x128 | 99 | 128±1.5 | 44 | 56 | 331 | 3000 | 100000 | 11.6 |
| 48x152 | 127 | 152±1.5 | 53 | 60 | 341 | 3200 | 100000 | 13.3 |
| 56x187 | 131 | 187±1.5 | 60 | 65 | 441 | 4100 | 100000 | 18.7 |
