The AM2/AM3 stud link anchor chain provided by Sinostar can provide BV, LR, CCS,ABS and other classification society certificates.

Categories

hot-sale products

Stud Link Anchor Chain AM2 for Marine Ship

Application:Mooring,Marine,Ship
Hot-dip galvanized Studless Fishing Chain Aquaculture

Application: Aquaculture, Fish farm mooring
AC-14 HHP Casting Steel Stockless Anchor Marine for Ship

AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
Marine ADA Aqua Drag Anchor aquaculture mooring

ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Marine G2130 Shackle Bolt Bow Forged Anchor Shackle

Application:Lifting accessory commonly used in industrial and construction settings.

Stud Link Anchor Chain AM2AM3 Hardware Rigging -sinostar marine equipment (2)

Stud Link Anchor Chain AM2AM3 Hardware Rigging -sinostar marine equipment (5)

Stud Link Anchor Chain AM2AM3 Hardware Rigging -sinostar marine equipment (4)

Stud Link Anchor Chain AM2AM3 Hardware Rigging -sinostar marine equipment (2)

Stud Link Anchor Chain AM2AM3 Hardware Rigging -sinostar marine equipment (5)

Stud Link Anchor Chain AM2AM3 Hardware Rigging -sinostar marine equipment (4)

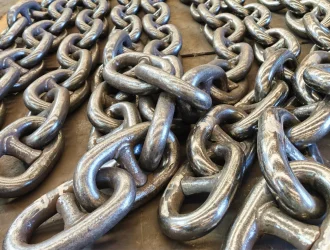

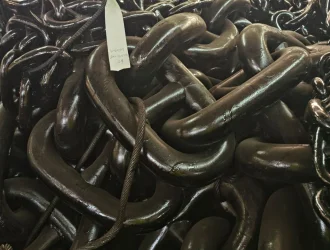

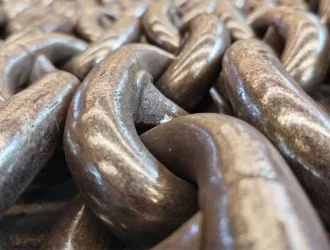

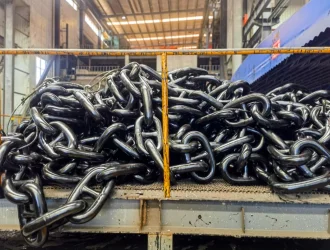

Stud Link Anchor Chain AM2 for Marine Ship

Product Features:
Application:	Mooring,Marine,Ship
Material:	Alloy steel, CM490/ CM690
Specification:	16mm to 155mm
Surface:	Black tar, Self color, HDG
Structure:	Combine
Certification:	LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc.

Description

Nominal	AM2		AM3		Weight
Dia.(mm)	MBL	PL	MBL	PL	(kg/m)
16	150	107	216	150	5.61
17.5	179	127	256	179	6.71
19	211	150	301	211	7.91
20.5	244	175	349	244	9.2
22	280	200	401	280	10.6
24	332	237	476	332	12.61
26	389	278	556	389	14.8
28	449	321	642	449	17.17
30	514	368	735	514	19.71
32	583	417	833	583	22.43
34	655	468	937	655	25.32
36	732	523	1050	732	28.38
38	812	581	1160	812	31.62
40	895	640	1280	895	35.04
42	981	703	1400	981	38.63
44	1080	769	1540	1080	42.4
46	1170	837	1680	1170	46.34
48	1270	908	1810	1270	50.46
50	1370	981	1960	1370	54.75
52	1480	1060	2110	1480	59.22
54	1590	1140	2270	1590	63.86
56	1710	1220	2430	1710	68.68
58	1810	1290	2600	1810	73.67
60	1940	1380	2770	1940	78.84
62	2060	1470	2940	2060	84.18
64	2190	1560	3130	2190	89.7
66	2310	1660	3300	2310	95.4
68	1450	1750	3500	2450	101.3
70	2580	1840	3690	2580	107.3
73	2790	1990	3990	2790	116.71
76	3010	2150	4300	3010	126.5
78	3160	2260	4500	3160	133.2
81	3380	2410	4820	3380	143.69
84	3610	2580	5160	3610	154.53
87	3850	2750	5500	3850	165.76
90	4090	2920	5840	4090	177.39
92	4260	3040	6080	4260	185.36
95	4510	3230	6440	4510	197.56
97	4680	3340	6690	4680	206.06
100	4940	3530	7060	4940	219
102	5120	3660	7320	5120	227.85
105	5390	3850	7700	5390	241.45
107	5570	3980	7960	5570	250.73
111	5940	4250	8480	5940	269.83
114	6230	4440	8890	6230	284.61
117	6510	4650	9300	6510	299.79
120	6810	4850	9720	6810	315.86
122	7000	5000	9990	7000	325.96
124	7200	5140	10280	7200	336.73
127	7490	5350	10710	7490	353.23
130	7800	5570	11140	7800	370.11
132	8000	5720	11420	8000	381.59
