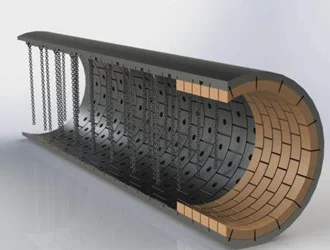

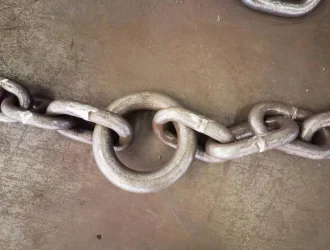

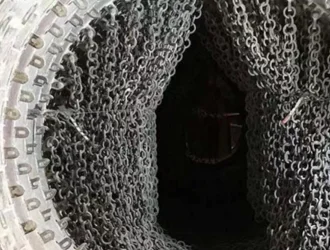

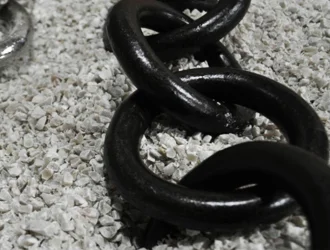

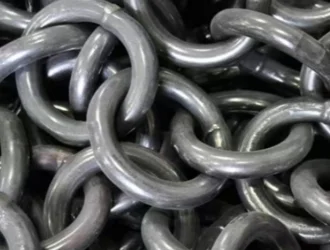

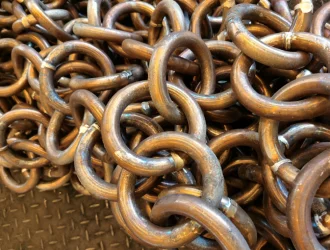

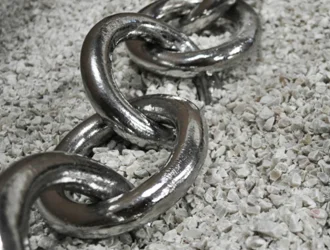

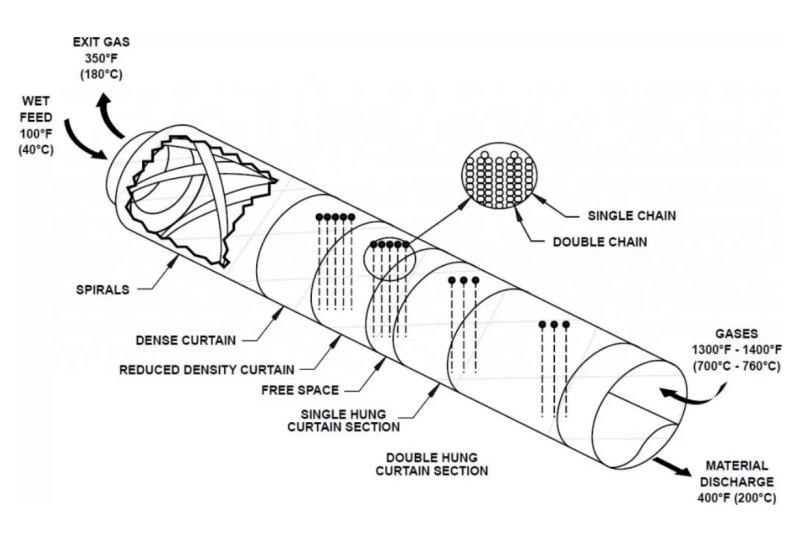

Heat Resistance Round Link Kiln Chain
| Product Features: | |
| Material: | Carbon steel, Alloy steel, Ferritic steel, Austenitic Cr-Ni-steel |
| Specification: | ø5/8"-ø1-1/4" |
| Structure: | Welded Chain |
| Surface: | As client requirement |
| Certificate: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |
Description

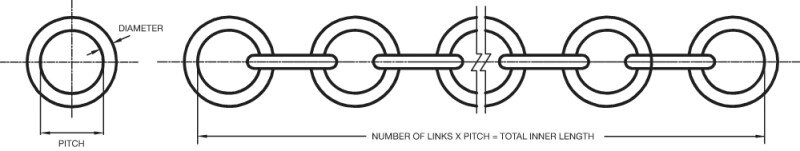

| NOMINAL SIZE | PITCH | UNIT WEIGHT/LINK | WEIGHT/100FT |
| （in） | （in） | (Lbs) | (Lbs) |
| 5/8 | 2-3/4 | 0.95 | 413 |
| 5/8 | 4 | 1.63 | 497 |
| 3/4 | 2-9/16 | 1.43 | 672 |
| 3/4 | 2-3/4 | 1.39 | 605 |
| 3/4 | 3 | 1.48 | 592 |
| 3/4 | 2-9/16 | 1.48 | 693 |
| 3/4 | 2-3/4 | 1.54 | 672 |
| 3/4 | 3 | 1.65 | 665 |
| 3/4 | 3-5/6 | 1.7 | 663 |
| 3/4 | 3-1/8 | 1.72 | 655 |
| 3/4 | 4 | 2.05 | 625 |
| 7/8 | 3 | 2.05 | 822 |
| 7/8 | 3-1/8 | 2.14 | 815 |
| 7/8 | 4 | 2.51 | 766 |
| 7/8 | 3 | 2.25 | 902 |
| 7/8 | 3-1/8 | 2.36 | 899 |
| 7/8 | 4 | 2.51 | 765 |
| 1 | 3 | 2.71 | 1088 |
| 1 | 3-1/8 | 2.85 | 1083 |
| 1 | 3-1/2 | 3.09 | 1057 |
| 1 | 4 | 3.35 | 1021 |
| 1-1/8 | 4 | 4.3 | 1310 |
| 1-3/16 | 4 | 5.03 | 1532 |
| 1-1/4 | 4 | 5.84 | 1781 |
