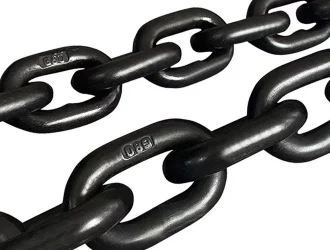

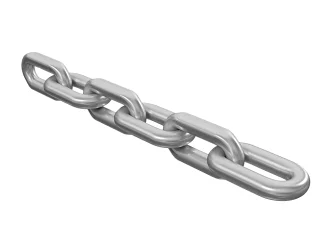

High Strength Compact Mining Chain Manufactured
| Product Features: | |

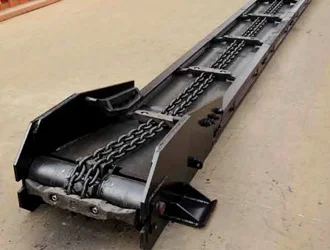

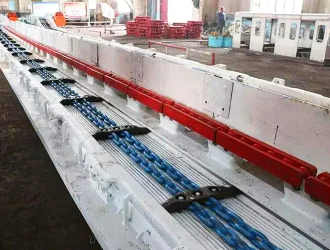

| Application: | Mining scraper chain for mining |
| Material: | High alloy steel |
| Grade: | G80 |
| Surface: | Black tar, Self color, HDG |
| Suitable: | MT/T929-2004，ISO9001 |
Description

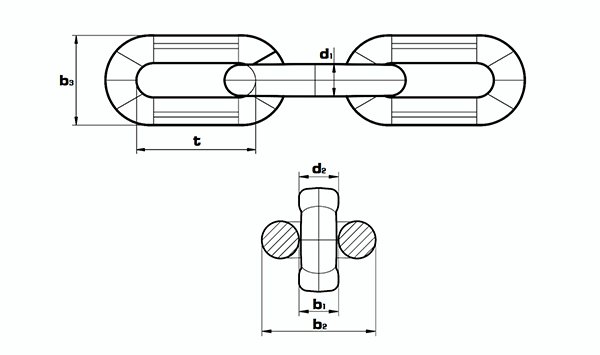

| Modle dXp | d1(mm) | d2(mm) | t(mm) | b1(mm) | b2(mm) | b3(mm) | Breaking(KN) | Weigh(kg) |
| 28X92 | 28 | 27 | 92 | 30 | 85 | 74 | 1050 | 12.8 |
| 34X126 | 34 | 37 | 126 | 38 | 109 | 97 | 1800 | 22.7 |
| 38X126 | 38 | 42 | 126 | 42 | 121 | 110 | 2220 | 29.4 |
| 38X137 | 38 | 42 | 137 | 42 | 12 | 110 | 2220 | 28.5 |
| 34X146 | 38 | 42 | 146 | 42 | 121 | 110 | 2220 | 28.4 |
| 42X146 | 42 | 48 | 146 | 48 | 135 | 115 | 2700 | 34.2 |
| 48X152 | 48 | 62 | 152 | 62 | 163 | 183 | 3550 | 48.1 |
