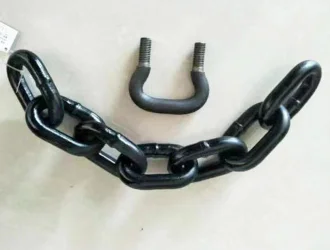

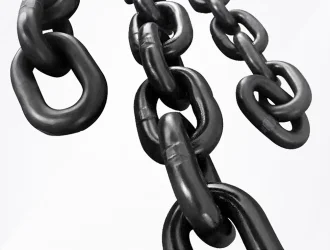

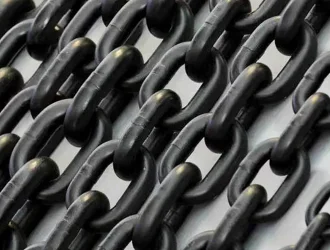

Mining High Strength Round Ring Chain
| Product Features: | |

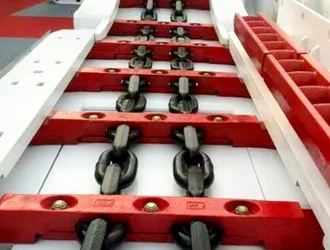

| Application: | Mining scraper chain for mining |
| Material: | High alloy steel |
| Grade: | G80 |
| Surface: | Black Tar, Self Color, HDG |
| Suitable: | MT/T 12718-91，ISO9001 |
Description

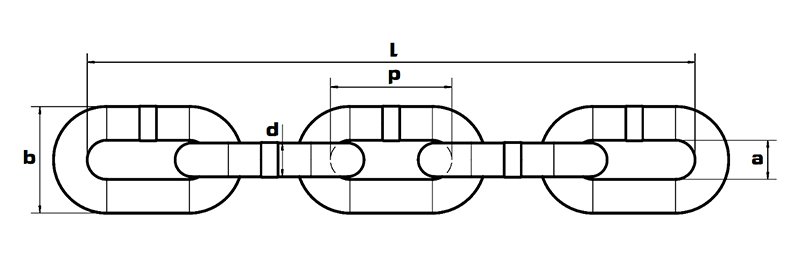

| Modle dXp | d(mm) | P(mm) | a(mm) | b(mm) | L(mm) | Breaking(KN) | Weigh(kg) |
| 10x40 | 10 | 40 | 12 | 34 | 200 | 126 | 1.9 |
| 14x50 | 14 | 50 | 17 | 48 | 250 | 250 | 4 |
| 18X64 | 18 | 64 | 21 | 60 | 320 | 410 | 6.6 |
| 19x64.5 | 19 | 64.5 | 22 | 63 | 322.5 | 450 | 7.6 |
| 22x86 | 22 | 86 | 26 | 73 | 430 | 610 | 9.5 |
| 26x92 | 26 | 92 | 30 | 85 | 460 | 850 | 13.7 |
| 30x108 | 30 | 108 | 34 | 97 | 540 | 1130 | 18 |
| 34x126 | 34 | 126 | 38 | 108 | 630 | 1450 | 22.7 |
| 38x137 | 38 | 137 | 42 | 121 | 685 | 1810 | 29 |
| 42x146 | 42 | 146 | 46 | 135 | 730 | 2220 | 36 |
| 48x152 | 48 | 152 | 62 | 183 | 760 | 2900 | 49 |
