AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Application:Lifting accessory commonly used in industrial and construction settings.
Product Features: | |
Application: | OffShore anchor,Aquaculture |
Material: | Alloy steel,Carbon steel |
Specification: | 300Kgs-30000Kgs |
Surface: | Black Painted |
Certification: | NS9415:2009 (Marine fish farms), LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

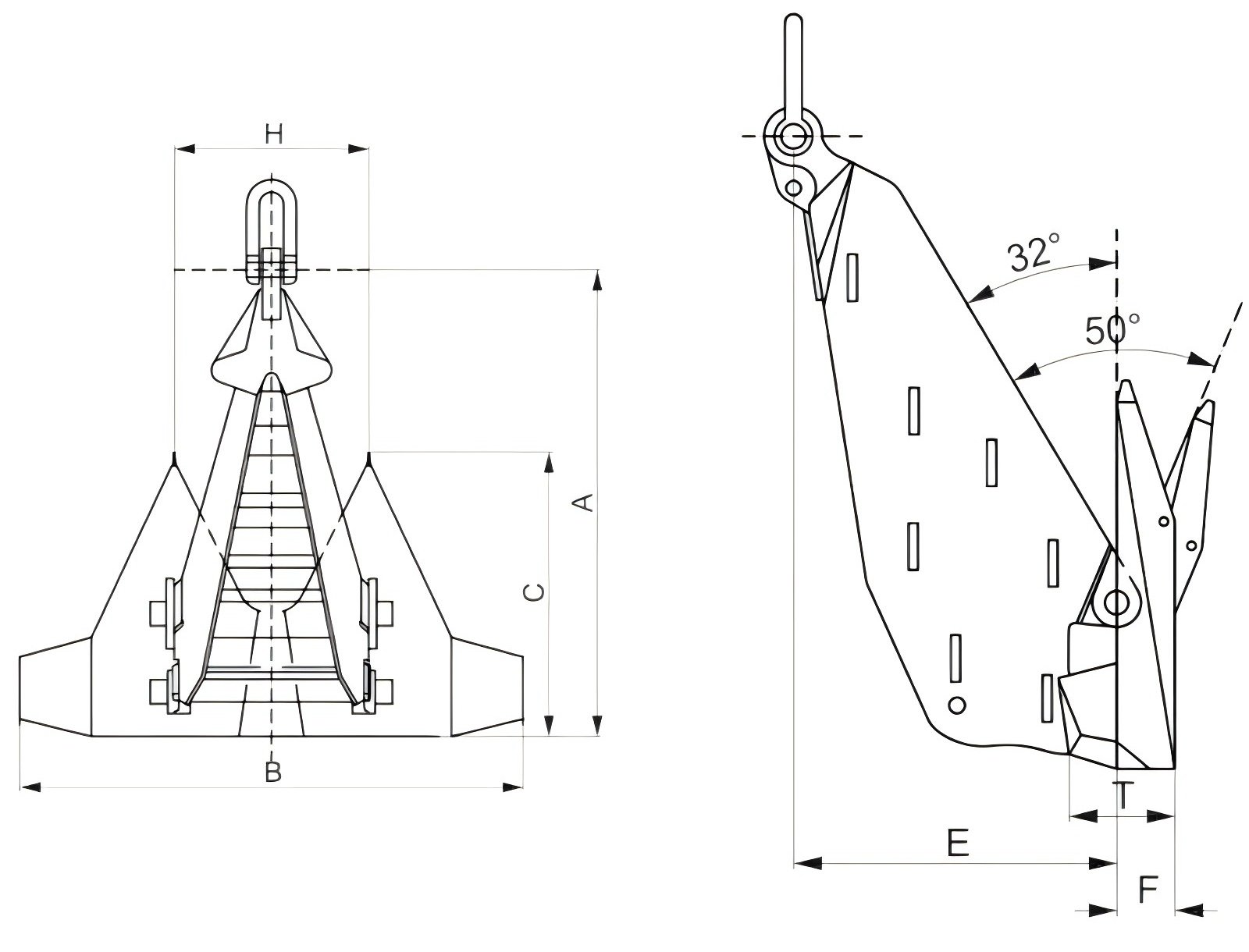

Norminal weight(kg) | Size(mm) | |||
- | A | B | F | H |
300 | 1828 | 1968 | 160 | 757 |
500 | 2040 | 2197 | 179 | 845 |
1000 | 2570 | 2770 | 226 | 1064 |
1500 | 2944 | 3174 | 261 | 1230 |
200 | 3244 | 3494 | 285 | 1343 |
3000 | 3711 | 4001 | 332 | 1540 |
4000 | 4083 | 4403 | 359 | 1692 |
5000 | 4402 | 4746 | 396 | 1835 |
6000 | 4680 | 5040 | 411 | 1988 |
7000 | 4900 | 5280 | 443 | 2045 |
8000 | 5151 | 5553 | 464 | 2139 |
9000 | 5359 | 5772 | 471 | 2219 |
10000 | 5549 | 5932 | 501 | 2305 |
12000 | 5893 | 6353 | 533 | 2450 |
14000 | 6209 | 6694 | 562 | 2580 |
15000 | 6354 | 6850 | 575 | 2640 |
16000 | 6459 | 6967 | 569 | 2673 |
18000 | 6753 | 7280 | 612 | 2806 |
20000 | 6994 | 7540 | 634 | 2907 |
22000 | 7220 | 7784 | 654 | 3001 |
25000 | 7535 | 8123 | 684 | 3132 |
30000 | 3003 | 8635 | 727 | 3329 |
