Product Features: | |

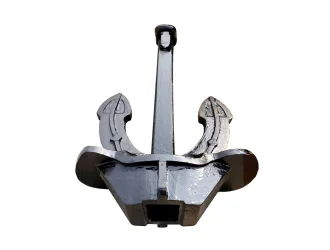

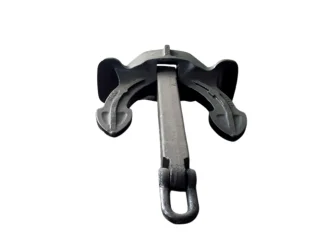

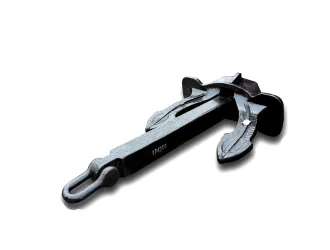

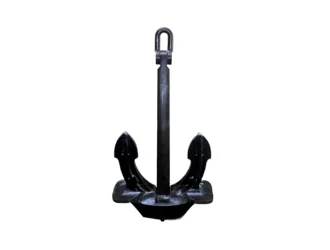

Application: | Anchor for ship |
Material: | Alloy steel,Casting |
Specification: | 180kgs to 8700kgs |
Surface: | Hot dip galvanizing |
Standard: | European standard/USA ASTM 80 |
Certificate: | LR, ABS, BV, DNV, CCS, NK, KR, RMRS,etc |
Norminal | Size(mm) | |||||
Weight(kg) | L | L1 | L2 | H | H1 | B1 |
180 | 650 | 459 | 910 | 111 | 480 | 280 |
240 | 720 | 510 | 1010 | 122 | 530 | 310 |
300 | 770 | 540 | 1080 | 131 | 570 | 331 |
480 | 900 | 640 | 1260 | 153 | 670 | 387 |
570 | 950 | 670 | 1330 | 162 | 700 | 408 |
660 | 1000 | 710 | 1440 | 170 | 740 | 430 |
780 | 1060 | 750 | 1480 | 180 | 780 | 456 |
900 | 1110 | 780 | 1550 | 189 | 820 | 477 |
1020 | 1160 | 820 | 1620 | 197 | 860 | 500 |
1140 | 1200 | 850 | 1680 | 204 | 890 | 520 |
1290 | 1250 | 880 | 1780 | 212 | 920 | 540 |
1440 | 1300 | 920 | 1820 | 221 | 960 | 560 |
1590 | 1340 | 950 | 1880 | 228 | 990 | 580 |
1740 | 1380 | 980 | 1930 | 235 | 1020 | 600 |
1920 | 1430 | 1010 | 2000 | 243 | 1060 | 620 |
2100 | 1470 | 1040 | 2060 | 250 | 1090 | 640 |
2280 | 1510 | 1070 | 2110 | 257 | 1120 | 650 |
2460 | 1550 | 1100 | 2170 | 264 | 1150 | 670 |
2640 | 1590 | 1120 | 2230 | 270 | 1180 | 690 |
2850 | 1630 | 1150 | 2280 | 277 | 1210 | 700 |
3060 | 1670 | 1180 | 2340 | 284 | 1240 | 720 |
3300 | 1710 | 1210 | 2390 | 291 | 1270 | 740 |
3540 | 1750 | 1240 | 2450 | 298 | 1290 | 750 |
3780 | 1790 | 1260 | 2510 | 304 | 1320 | 770 |
4050 | 1830 | 1290 | 2560 | 311 | 1350 | 790 |
4320 | 1870 | 1320 | 2620 | 318 | 1380 | 800 |
4890 | 1950 | 1380 | 2730 | 332 | 1440 | 840 |
5250 | 2000 | 1410 | 2800 | 340 | 1480 | 860 |
6000 | 2090 | 1480 | 2930 | 355 | 1540 | 900 |
6450 | 2140 | 1510 | 3000 | 364 | 1580 | 920 |
7800 | 2280 | 1610 | 3190 | 388 | 1680 | 980 |
8700 | 2380 | 1670 | 3320 | 403 | 1780 | 1020 |
