Product Features: | |
Application: | Anchor for ship |
Material: | Alloy steel,Carbon steel,Casting |
Specification: | 50kgs to 20625 kgs |
Feature: | High holding power anchor |
Standard: | CB711-95 |
Certification: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS |

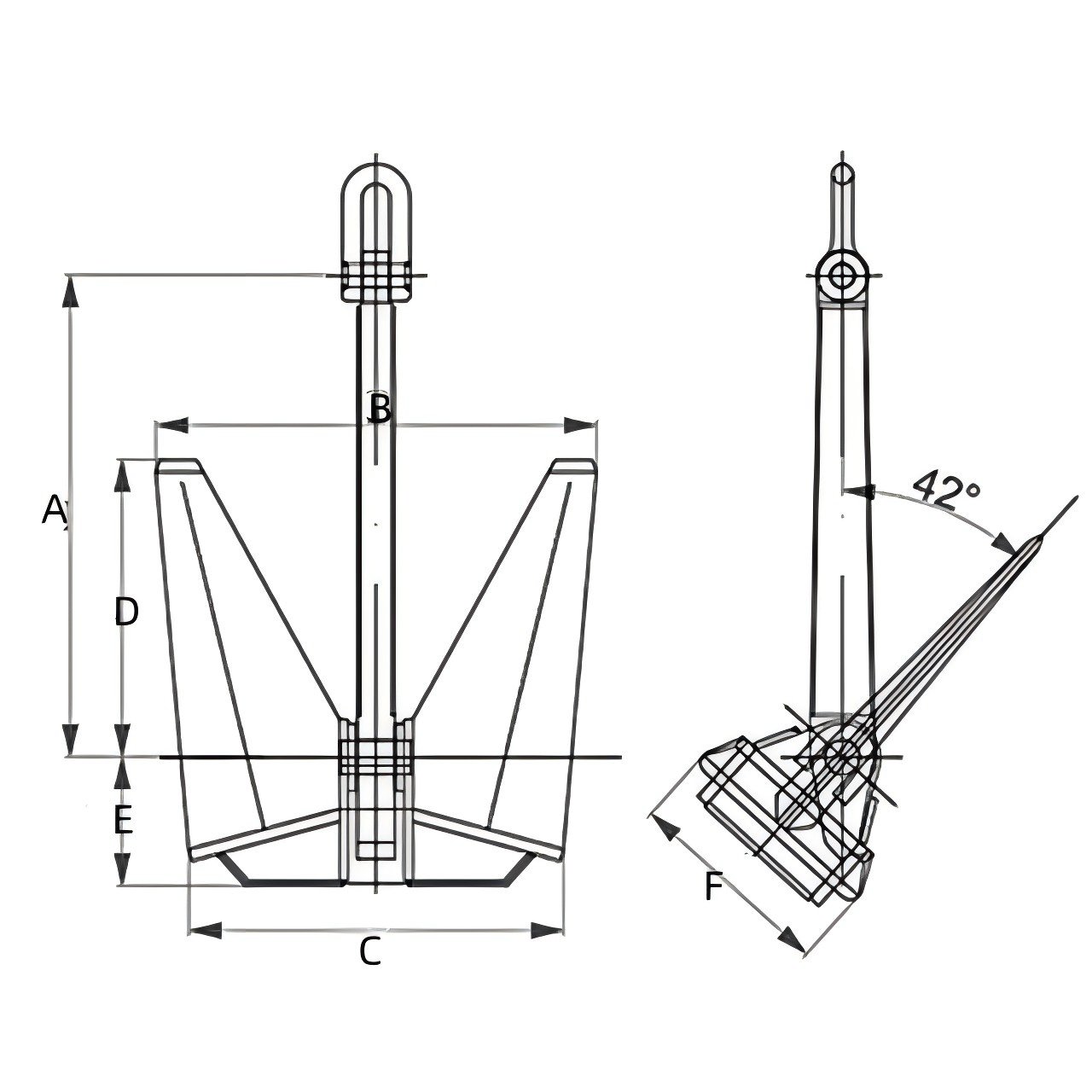

Norminal | Size(mm) | |||||
Weight(kg) | A | B | C | D | E | F |
50 | 517 | 440 | 400 | 100 | 613 | 255 |
100 | 653 | 555 | 505 | 130 | 775 | 320 |
200 | 825 | 700 | 640 | 160 | 978 | 400 |
240 | 880 | 745 | 680 | 175 | 1040 | 425 |
320 | 964 | 820 | 745 | 190 | 1140 | 470 |
400 | 1040 | 885 | 805 | 205 | 1230 | 505 |
480 | 1105 | 940 | 855 | 215 | 1305 | 535 |
520 | 1133 | 960 | 875 | 220 | 1340 | 550 |
600 | 1191 | 1010 | 920 | 235 | 1410 | 580 |
720 | 1262 | 1075 | 975 | 250 | 1495 | 615 |
800 | 1310 | 1115 | 1015 | 255 | 1550 | 635 |
900 | 1365 | 1160 | 1055 | 270 | 1615 | 665 |
1000 | 1410 | 1200 | 1090 | 275 | 1670 | 670 |
1250 | 1521 | 1290 | 1175 | 300 | 1800 | 740 |
1305 | 1541 | 1309 | 1196 | 296 | 1824 | 729 |
1500 | 1615 | 1370 | 1250 | 315 | 1910 | 785 |
1750 | 1705 | 1445 | 1320 | 335 | 2015 | 830 |
2000 | 1780 | 1510 | 1375 | 350 | 2105 | 865 |
2500 | 1920 | 1630 | 1480 | 375 | 2265 | 930 |
3040 | 2042 | 1735 | 1585 | 390 | 2418 | 968 |
3240 | 2086 | 1773 | 1620 | 398 | 2471 | 988 |
3940 | 2226 | 1892 | 1730 | 425 | 2640 | 1055 |
4500 | 2328 | 1978 | 1808 | 444 | 2758 | 1103 |
5175 | 2439 | 2072 | 1894 | 465 | 2889 | 1155 |
6225 | 2594 | 2204 | 2014 | 495 | 3072 | 1229 |
6525 | 2635 | 2239 | 2046 | 503 | 3121 | 1248 |
7875 | 2805 | 2384 | 2178 | 535 | 3323 | 1329 |
8775 | 2908 | 2471 | 2258 | 555 | 3445 | 1378 |
9225 | 2958 | 2512 | 2296 | 564 | 3502 | 1401 |
10215 | 3050 | 2592 | 2369 | 582 | 3613 | 1445 |
10575 | 3095 | 2630 | 2403 | 590 | 3666 | 1466 |
15000 | 3478 | 2955 | 2700 | 664 | 4119 | 1647 |
16125 | 3563 | 3027 | 2766 | 680 | 4220 | 1687 |
17250 | 3643 | 3096 | 2829 | 696 | 4315 | 1726 |
18375 | 3712 | 3162 | 2889 | 710 | 4407 | 1762 |
19500 | 3795 | 3225 | 2947 | 725 | 4495 | 1798 |
20625 | 3867 | 3286 | 3003 | 738 | 4580 | 1832 |
