Application:Lifting accessory commonly used in industrial and construction settings.
Product Features: | |

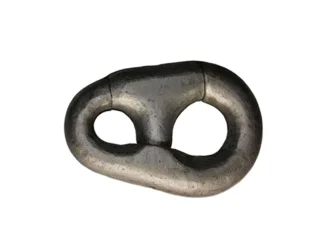

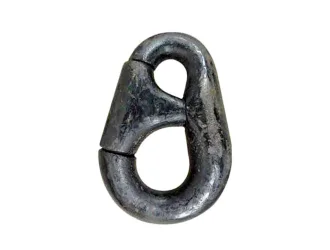

Application: | Shaped end shackle, Detachable anchor connecting link |
Material: | CM490,CM690 Steel. |
Grade: | U2, U3, U4,ORQ, R3, R3S, R4, R4S, R5 |
Diameters: | 32mm to 102mm |
Surface: | Black painting, Galvanized, Original color. |
Certification: | ABS,BV,LR,CCS,DNV,KR etc. |
Chain Dia. | Dimensions (mm) | Weight | |||||||||
(mm) | A | B | C | D | E | F | G | H | J | K | ( kg) |
32~34 | 298 | 206 | 59 | 40 | 48 | 83 | 40x44 | 56 | 26 | 43 | 13 |
42~52 | 378 | 260 | 76 | 51 | 64 | 100 | 51x60 | 74 | 32 | 52 | 27 |
52~60 | 454 | 313 | 92 | 60 | 76 | 121 | 62x73 | 88 | 37 | 64 | 49 |
62~79 | 562 | 376 | 117 | 79 | 95 | 149 | 85x79 | 111 | 48 | 76 | 94 |
81~92 | 654 | 419 | 133 | 92 | 124 | 149 | 111x102 | 130 | 54 | 79 | 149 |
94~95 | 692 | 435 | 146 | 98 | 130 | 159 | 124x137 | 141 | 57 | 83 | 236 |
97~102 | 889 | 571 | 190 | 121 | 165 | 190 | 130x133 | 181 | 73 | 108 | 386 |
