Swivel Forerunner(Swivel Piece) commonly used to connecting anchor and anchor chains.Joining Form: E+EL+SW+EL+C

Categories

hot-sale products

Stud Link Anchor Chain AM2 for Marine Ship

Application:Mooring,Marine,Ship
Hot-dip galvanized Studless Fishing Chain Aquaculture

Application: Aquaculture, Fish farm mooring
AC-14 HHP Casting Steel Stockless Anchor Marine for Ship

AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
Marine ADA Aqua Drag Anchor aquaculture mooring

ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Marine G2130 Shackle Bolt Bow Forged Anchor Shackle

Application:Lifting accessory commonly used in industrial and construction settings.

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (2)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (5)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (4)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (3)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (2)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (5)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (4)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment (3)

Swivel M2M3 Anchor Chain Accessories -sinostar marine equipment

Marine Swivel Anchor Chain in China Factory

Product Features:
Application:	Swivel for ship
Material:	Alloy steel/carbon steel/stainless steel
Specification:	16mm to 162mm
Surface:	Black tar/hot-dip galvanized
Standard:	ASTM, GB, DIN, ANSI, JIS, ISO
Certification:	LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc

Description

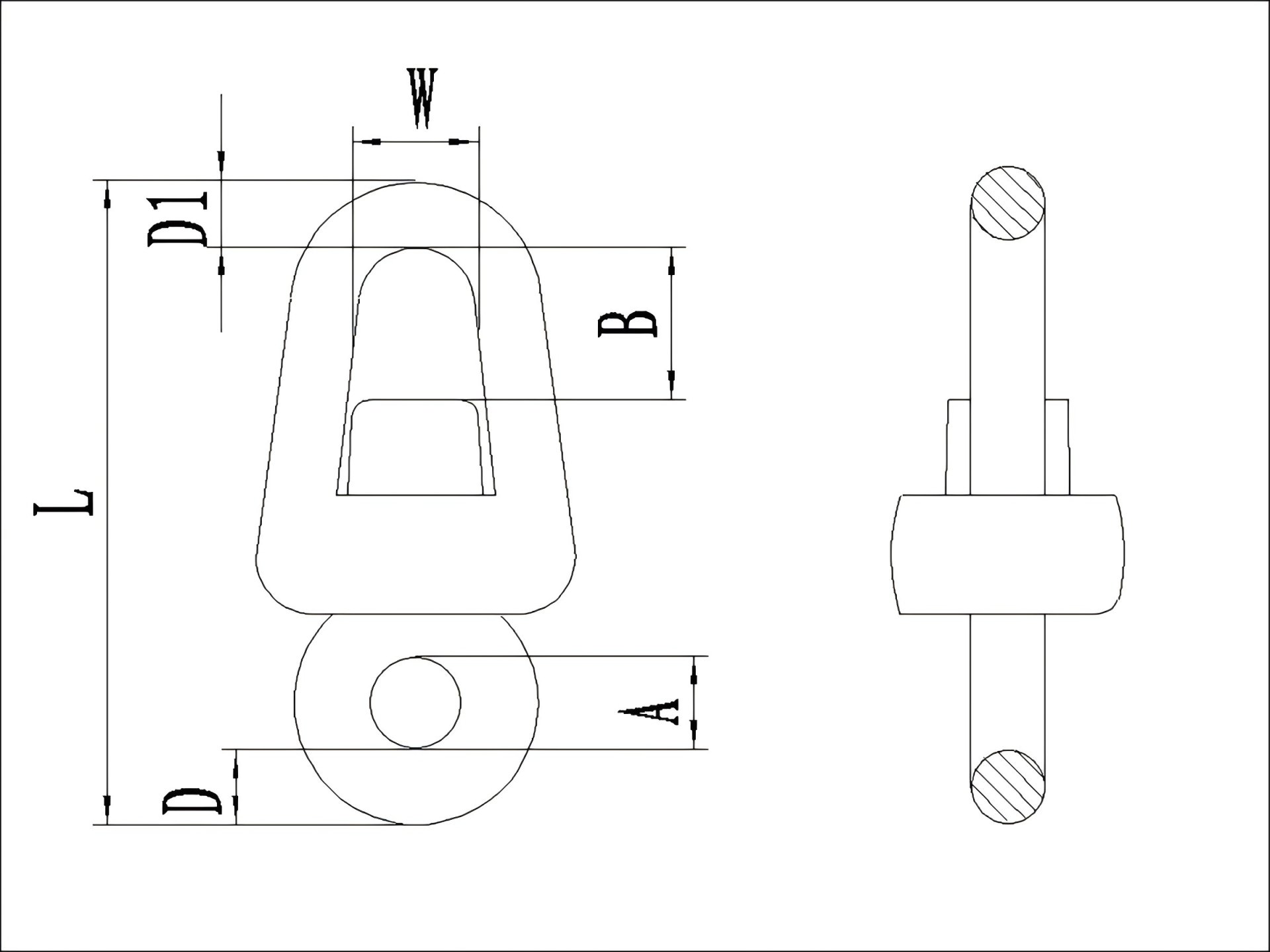

Nominal	AM2 (KN)(KN)		AM3 (KN)		Weight(kg)
Size(mm)	BL	PL	BL	PL	-
16	150	107	216	150	1.34
17.5	179	127	256	179	1.73
19	211	150	301	211	2.17
20.5	244	175	349	244	2.2
22	280	200	401	280	3.5
24	332	237	476	332	4.53
26	389	278	556	389	5.79
28	449	321	642	449	7.25
30	514	368	735	514	9
32	583	417	833	583	10.03
34	655	468	937	655	12.75
36	732	523	1050	732	14.96
38	812	581	1160	812	17.44
40	895	640	1280	895	20.25
42	981	703	1400	981	25.4
44	1080	769	1540	1080	26.6
46	1170	837	1680	1170	30.67
48	1270	908	1810	1270	35
50	1370	981	1960	1370	40.5
52	1480	1060	2110	1480	49.5
54	1590	1140	2270	1590	50.5
56	1710	1220	2430	1710	55
58	1810	1290	2600	1810	64.6
60	1940	1380	2770	1940	71.3
62	2060	1470	2940	2060	77.7
64	2190	1560	3130	2190	83.3
66	2310	1660	3300	2310	88.7
68	1450	1750	3500	2450	100
70	2580	1840	3690	2580	107.8
73	2790	1990	3990	2790	125.6
76	3010	2150	4300	3010	143.8
78	3160	2260	4500	3160	154
81	3380	2410	4820	3380	188
84	3610	2580	5160	3610	198
87	3850	2750	5500	3850	215
90	4090	2920	5840	4090	238
92	4260	3040	6080	4260	252
95	4510	3230	6440	4510	269
97	4680	3340	6690	4680	301
100	4940	3530	7060	4940	330
102	5120	3660	7320	5120	344
105	5390	3850	7700	5390	387
107	5570	3980	7960	5570	428
111	5940	4250	8480	5940	448
114	6230	4440	8890	6230	460
117	6510	4650	9300	6510	475
120	6810	4850	9720	6810	547
122	7000	5000	9990	7000	649
124	7200	5140	10280	7200	680
127	7490	5350	10710	7490	729
130	7800	5570	11140	7800	784
132	8000	5720	11420	8000	820
137	8510	6080	12160	8510	812
142	9030	6450	12910	9030	1012
147	9560	6840	13660	9560	1124
152	10100	7220	14430	10100	1238
157	10640	7600	15200	10640	1360
162	11180	7990	15980	11180	1490
