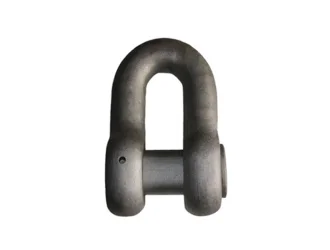

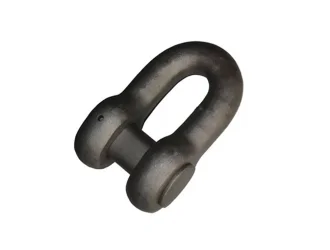

Marine Joining Shackle Anchor Chain For Ship Supplier

Product Features:
Application:	Connect two lengths of chain fitted with an end link
Material:	Alloy steel CM490/CM690
Holding power:	At least 40 times the self weight
Specification:	20.5mm to 132mm
Surface:	Hot dip galvanizing
Certification:	LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc

Description

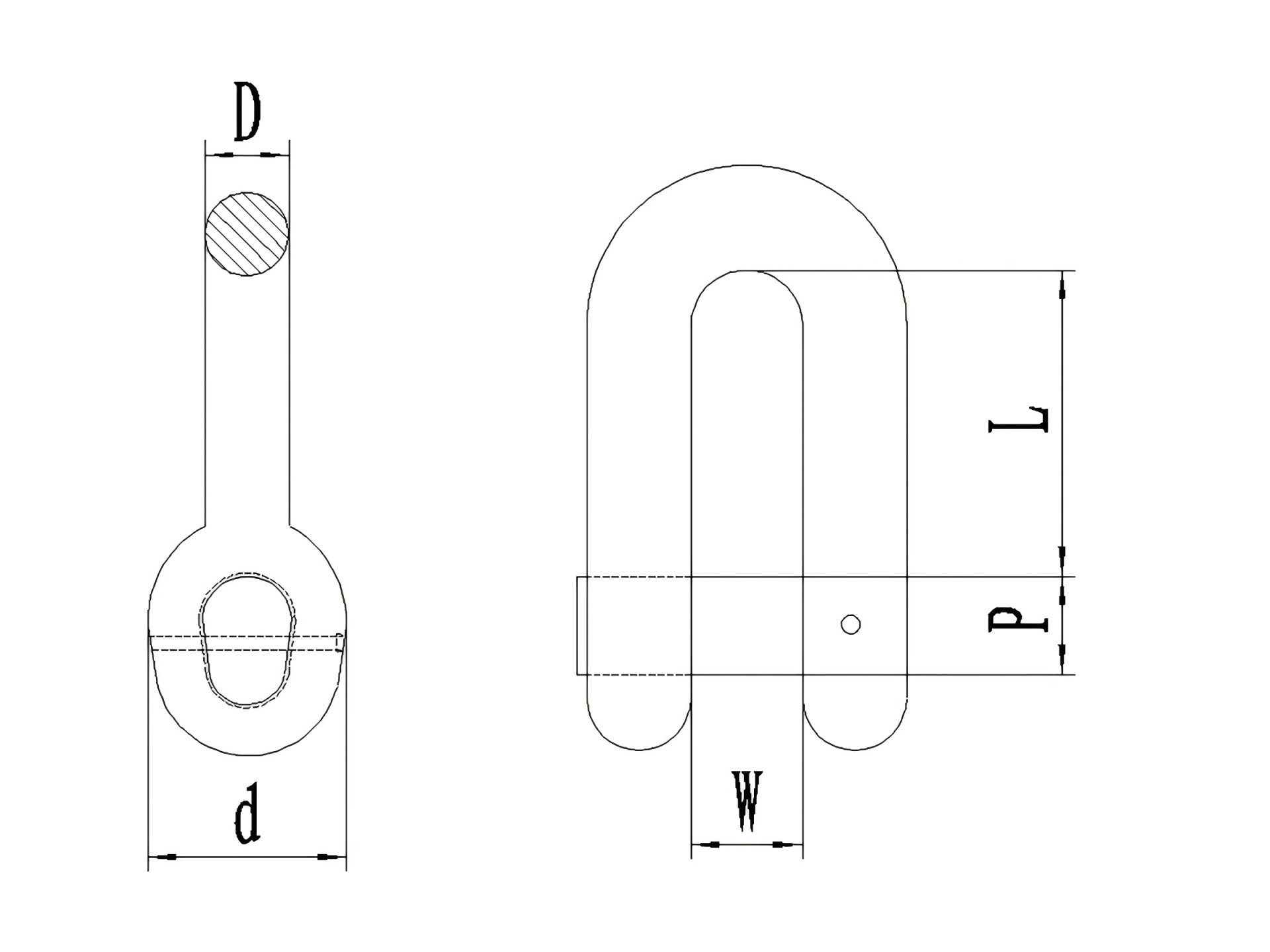

Size(mm)	D(mm)	L(mm)	W(mm)	d(mm)	P(mm)	Unit weight(kg)
20.5	27	70	28	57	33	2.2
24	31	82	34	67	38	3.4
28	36	95	40	78	45	5.19
30	39	102	42	84	48	6.32
34	44	116	48	95	54	9.56
36	47	122	50	101	58	11.31
40	52	136	56	112	64	15.5
42	55	143	58	118	67	18.1
46	60	156	64	129	74	23.33
48	62	163	68	134	77	27.5
50	65	170	70	140	80	31.6
54	70	184	76	151	86	38.5
56	73	190	78	157	90	46
60	78	204	84	168	96	51
62	81	211	86	174	99	59.2
66	86	224	92	185	106	75
68	88	231	96	190	109	76.7
70	91	238	98	196	112	90
76	99	258	106	213	122	107
78	101	265	110	218	125	116
81	105	275	114	227	130	130
87	113	296	122	244	139	160
90	117	306	126	252	144	176
95	124	323	132	266	152	215
97	126	330	136	272	155	222
100	130	340	140	280	160	252
105	137	357	146	294	168	294
107	139	364	150	300	171	305
114	148	388	160	319	182	345
117	152	398	164	328	187	365
120	156	408	168	336	192	400
122	159	415	170	342	195	425
127	165	432	178	356	203	499
130	169	442	182	364	208	536
132	172	449	184	370	211	561
