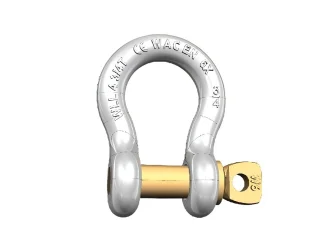

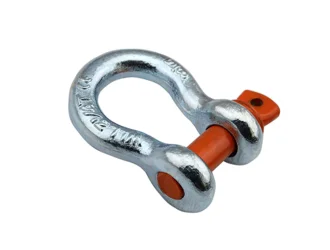

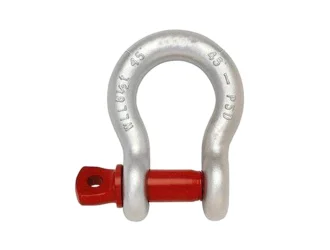

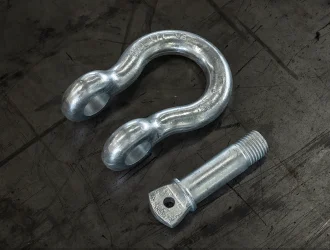

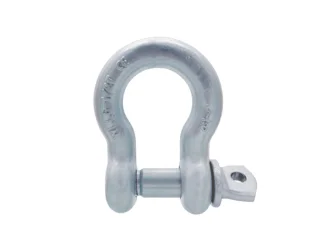

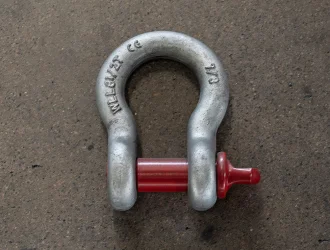

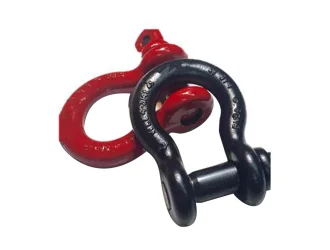

Marine G209 Anchor Shackle Lifting Alloy Steel Forged
| Product Features: | |
| Application: | Lifting accessory commonly used in industrial and construction settings |

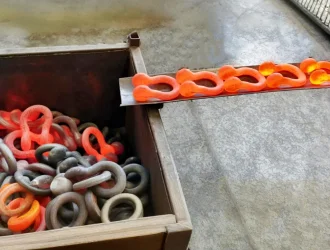

| Material: | Carbon steel & alloy steel,6 times,Drop forging. |
| Specification: | 1/4” to 3” |
| Temperature range: | -20℃ up to +200℃,Quenching and tempering. |
| Standard: | US federal specification RR-C-271F, Type IVA, Grade B and GB 8112-1999. |
| Certification: | ISO9001，EN 10204 3.1，CCS、ABS、DNV etc |
Description
| Size | WLL | Weight | Dimensions (mm) | Tolerance | ||||||||
| - | (Ton.) | (Kg) | A | B | C | D | E | F | H | L | G | - |
| 1/4" | 0.5 | 0.05 | 11.9 | 8 | 46.7 | 6.4 | 19.8 | 15.7 | 24.7 | 32.6 | 37 | ±5% |
| 5/16" | 0.75 | 0.09 | 13.5 | 9.5 | 53 | 7.9 | 21.3 | 19 | 29.3 | 37.3 | 43.4 | ±5% |
| 3/8" | 1 | 0.14 | 16.8 | 11 | 63 | 9.6 | 26.2 | 23.4 | 36 | 45.4 | 51 | ±5% |
| 7/16" | 1.5 | 0.2 | 19 | 12.7 | 73.9 | 11.2 | 29.5 | 27 | 41.4 | 51.9 | 60 | ±5% |
| 1/2" | 2 | 0.33 | 20.6 | 16 | 83.5 | 12.7 | 33 | 30 | 46 | 58.5 | 68 | ±5% |
| 5/8" | 3.25 | 0.62 | 27 | 19 | 106 | 16 | 42 | 39 | 59 | 74 | 87 | ±5% |
| 3/4" | 4.75 | 1 | 31.8 | 22.2 | 125 | 19 | 51 | 47 | 69.8 | 89 | 101 | ±5% |
| 7/8" | 6.5 | 1.6 | 36.6 | 25.4 | 147 | 22 | 58 | 54 | 80.6 | 102 | 117 | ±5% |
| 1" | 8.5 | 2.33 | 43 | 28.5 | 166 | 25 | 68 | 60 | 93 | 118 | 135.5 | ±5% |
| 1 1/8" | 9.5 | 3.05 | 46 | 31.7 | 185.5 | 28.5 | 74 | 68.5 | 103 | 130 | 146 | ±5% |
| 1 1/4" | 12 | 4.31 | 51.5 | 35.1 | 208 | 32 | 82 | 76 | 115.5 | 146 | 161 | ±5% |
| 1 3/8" | 13.5 | 5.98 | 57 | 38 | 228 | 35 | 89 | 84 | 127 | 159 | 172 | ±5% |
| 1 1/2" | 17 | 7.21 | 60.5 | 41.5 | 254 | 38 | 98 | 92 | 136.5 | 174 | 187 | ±5% |
| 1 3/4" | 25 | 12.7 | 73 | 50.8 | 303 | 45 | 127 | 109 | 163 | 217 | 220 | ±5% |
| 2" | 35 | 20.4 | 82.5 | 57.1 | 341 | 51 | 146 | 127 | 184.5 | 248 | 241 | ±5% |
| 2 1/4" | 42.5 | 29 | 95 | 63 | 382 | 57 | 160 | 143 | 209 | 274 | 295 | ±5% |
| 2 1/2" | 55 | 38 | 105 | 69.8 | 455 | 66.5 | 179 | 150 | 235 | 321 | 316 | ±5% |
| 3" | 85 | 64 | 127 | 85 | 546 | 76 | 200 | 165 | 379 | 371 | 361 | ±5% |
