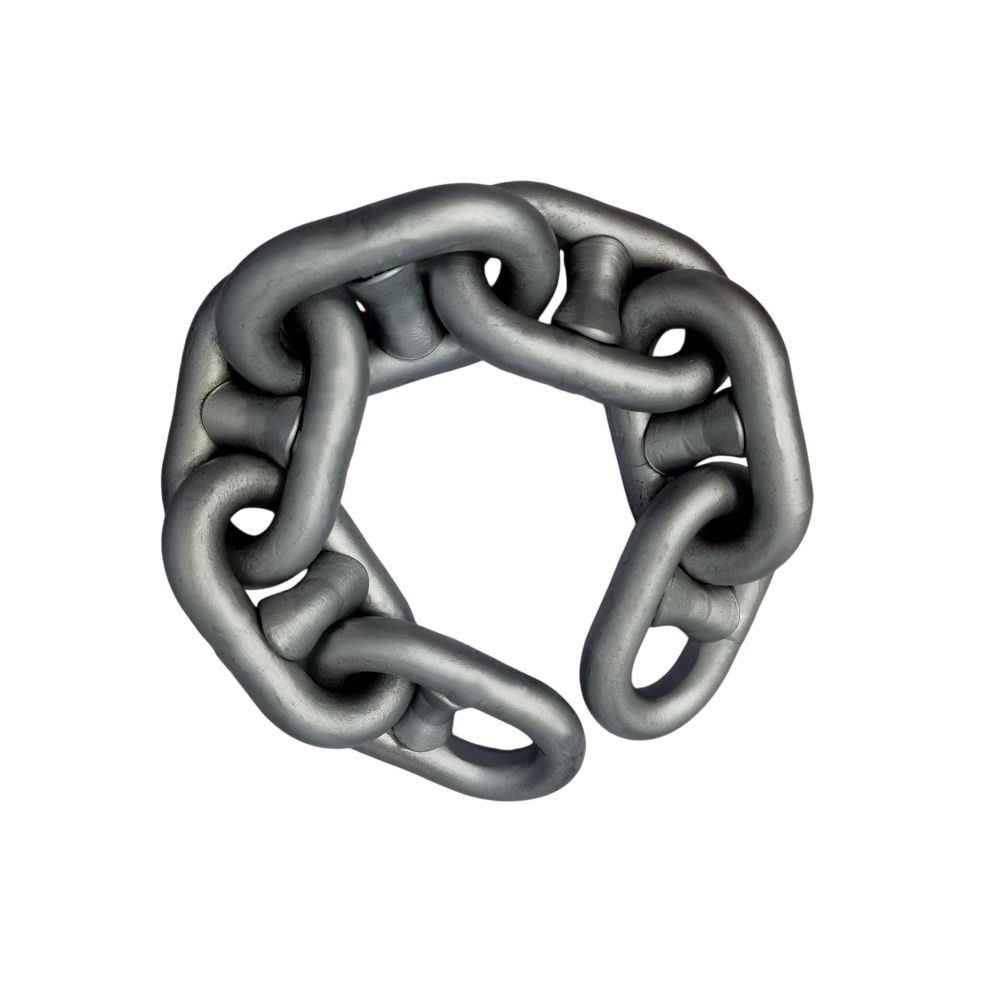

Stud Link Anchor Chain AM2 for Marine Ship
Application:Mooring,Marine,Ship
Categories
hot-sale products
-
-
Hot-dip galvanized Studless Fishing Chain Aquaculture
Application: Aquaculture, Fish farm mooring
-
AC-14 HHP Casting Steel Stockless Anchor Marine for Ship
AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
-
Marine ADA Aqua Drag Anchor aquaculture mooring
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
-
Marine G2130 Shackle Bolt Bow Forged Anchor Shackle
Application:Lifting accessory commonly used in industrial and construction settings.

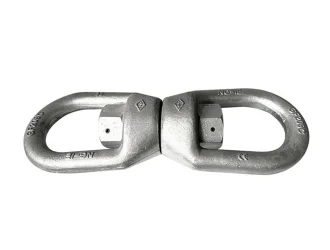

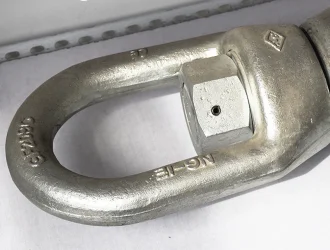

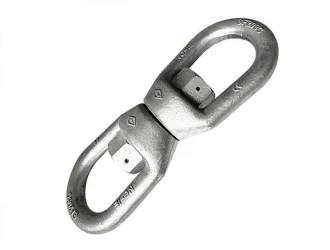

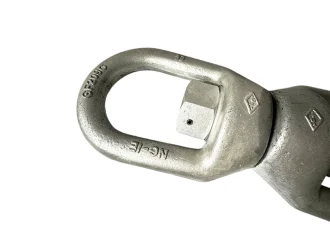

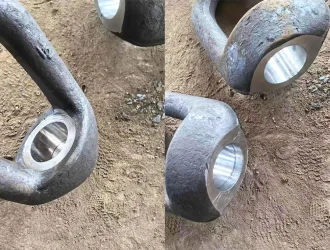

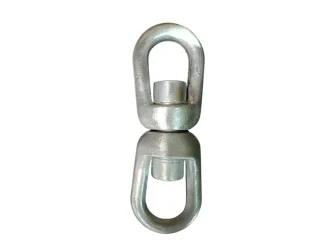

G412 Eye Swivels Steel Forged Galvanized Chain Swivels
| Product Features: | |
| Application: | Used for lifting devices to ensure the safety of hoisting |
| Material: | Forged alloy steel |
| Specification: | 1/4"-1 1/2" |
| Surface: | Hot dip galvanizing |
| Certification: | United states standards,ISO9001 |
Description
| Nominal | Working load limit | Weight | Dimensions(mm) | ||||
| (in) | (Ton) | (kg) | A | B | C | M | R |
| 1/4 | 0.39 | 0.1 | 31.75 | 17.53 | 19.05 | 8.00 | 74.70 |
| 5/16 | 0.57 | 0.16 | 41.402 | 20.57 | 25.40 | 10.00 | 90.50 |
| 3/8 | 1.02 | 0.36 | 50.8 | 23.88 | 31.75 | 12.00 | 111.00 |
| 1/2 | 1.63 | 0.62 | 63.5 | 33.78 | 38.10 | 16.00 | 138.18 |
| 5/8 | 2.36 | 1.14 | 76.2 | 39.62 | 44.45 | 20.00 | 165.00 |
| 3/4 | 3.27 | 2.36 | 88.9 | 45.47 | 50.80 | 22.00 | 182.00 |
| 7/8 | 4.54 | 2.7 | 101.6 | 52.32 | 57.15 | 30.00 | 213.00 |
| 1 | 5.67 | 4.07 | 114.3 | 58.67 | 63.50 | 30.00 | 241.00 |
| 1 1/8 | 6.5 | 5.64 | 127 | 68.30 | 70.00 | 30.00 | 345.00 |
| 1 1/4 | 8.2 | 8.22 | 143 | 68.50 | 79.50 | 36.00 | 293.00 |
| 1 3/8 | 13.5 | 14.1 | 164 | 94.00 | 92.00 | 48.00 | 426.00 |
| 1 1/2 | 20.5 | 23.19 | 198 | 112.00 | 122.00 | 57.15 | 468.00 |
