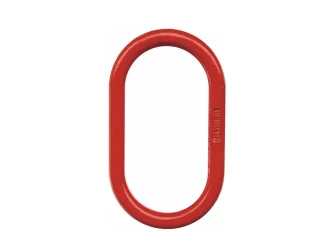

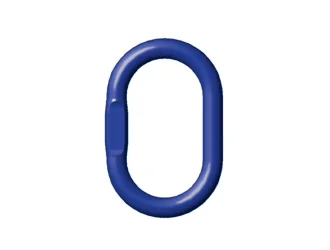

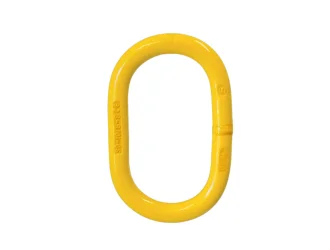

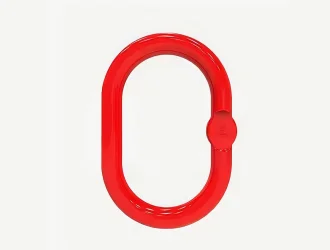

G80 Master Link Forged Chain Sling Lifting Accessory
| Product Features: | |
| Application: | Lifting accessory commonly used in industrial and construction settings |
| Super alloy steel: | Quenched and tempered |
| Specification: | 10mm-45mm |
| Individually proof test: | 2.5times working load limit |
| Breakage test and fatigue test: | 100% magnaflux crack detection |
| Standard: | EN 1677-4 (DIN 5688-3),ISO9001 |
Description
| Weight（Kg） | WLL（Ton.） | A mm | B mm | D mm | SxH |
| 0.34 | 1.6 | 110 | 60 | 10 | 7十0.3×25 |
| 0.43 | 1.6 | 140 | 80 | 13 | 7+0.3×25 |
| 0.54 | 2.12 | 110 | 60 | 16 | 7+0.5×25 |
| 0.66 | 2.12 | 140 | 80 | 16 | 7+0.5×25 |
| 0.823 | 3.15 | 135 | 75 | 18 | 8十0.5×28 |
| 1.1 | 3.15 | 180 | 120 | 18 | 8+0.5×28 |
| 1.5 | 5.3 | 160 | 90 | 22 | 11 ±0.5×35 |
| 1.68 | 5.3 | 180 | 120 | 22 | 11 ±0.5×35 |
| 2.32 | 8 | 180 | 100 | 26 | 13 士 0.5×43 |
| 3.95 | 11.2 | 200 | 110 | 32 | 17±0.5×55 |
| 6.34 | 14 | 260 | 140 | 36 | 19± 0.5×60 |
| 8.96 | 17 | 300 | 160 | 40 | 20± 0.5×64 |
| 12.8 | 21.2 | 340 | 180 | 45 | —— |
