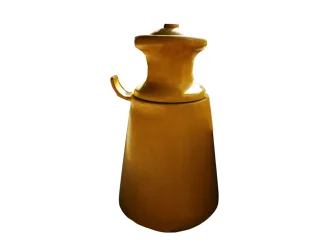

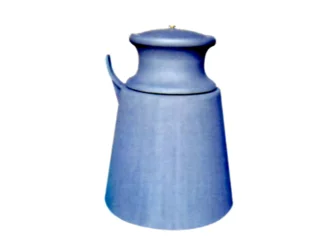

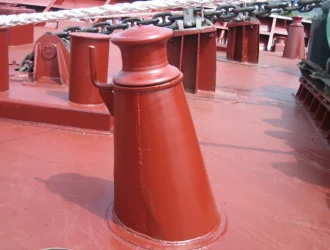

Single Roller Fairlead With Socket Type B 150-450

Product Features:
Material:	Cast steel or cast iron
Surface:	Sandblasting then painted epoxy
Coating:	UV and Saltwater
Standard:	CB/T 436,ISO9001,GB/T8918
Certification:	LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc.

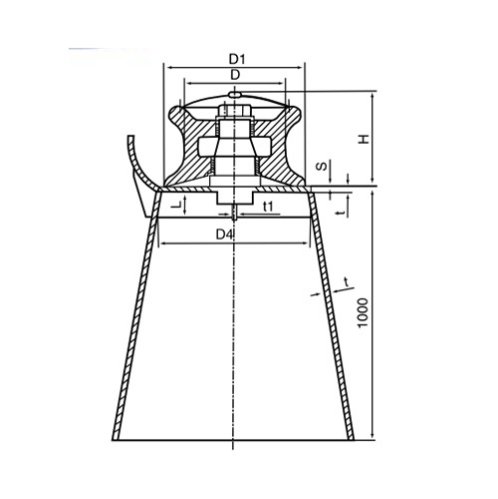

Dia. of roller D	Appropriate cable dia.				Size								Weight(kg)
	1570Mpa,Steel wire strength		Hemp rope	Synthetic fiber rope	D1	D4	H	H1	L	S	t	t1	Guide roller	Stand
MM	6×24	6×37
150	16~18	14~16	45	32	240	264	154	30	75	5	12	8	24.8	129
200	22	20	55	40	310	338	186	30	85	5	14	10	49.3	178
250	24	24	65	45	380	408	230	35	100	6	14	10	92	207
300	30	28	70	50	440	472	255	35	100	7	16	12	127	265
350	38	34	75	55	500	536	271	35	100	7	18	14	168	332
400	40~42	38~40	85	65	560	600	307	40	100	7	20	16	252.5	401.3
450	44	42~44	一	80	630	670	316	40	120	7	20	16	310	452
Note: The weight of stand is calculated when stand’s height is 1000mm.
