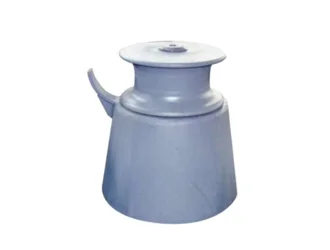

Single Roller Fairlead With Socket Type A 100-450

Product Features:
Material:	Cast steel or cast iron
Surface:	Sandblasting then painted epoxy
Coating:	UV and Saltwater
Standard:	CB/T 436,ISO9001,GB/T8918
Certification:	LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc.

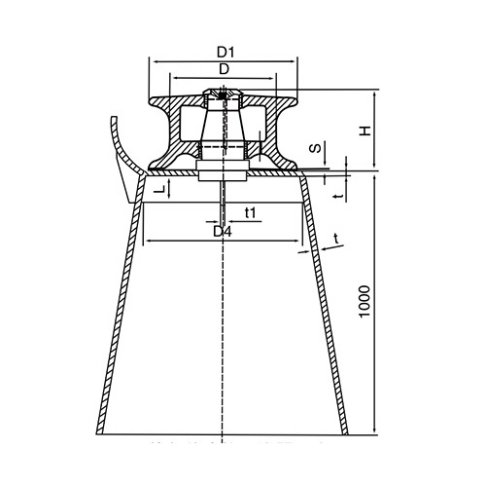

Dia. of roller D	Appropriate cable dia.				Size								Weight(kg)
MM	1570MPa,Steel wire strength		Hemp rope	Synthetic fiber rope	D1	D4	H	H1	L	S	t	t1	Guide roller	Stand
	6×24	6×37
100	11	11	40	28	160	176	128	35	60	3	8	6	9.9	63.9
150	16~18	14~16	45	32	240	264	211	40	75	3	12	8	33.8	129
200	22	20	55	40	310	338	251	50	85	3	14	10	68	178
250	24	24	65	45	380	408	298	60	100	4	14	10	114	207
300	30	28	70	50	440	472	321	60	100	4	16	14	168	265
350	38	34	75	55	500	536	346	65	100	4	18	14	248	332
400	40~42	38~40	85	65	560	600	371	70	100	5	20	16	355	401.3
450	44	42~44		80	620	660	394	90	120	5	20	16	452	445.4
Note: The weight of stand is calculated when stand’s height is 1000mm.
