Application:Mooring,Marine,Ship
Application:Mooring,Marine,Ship
Application: Aquaculture, Fish farm mooring
AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Application:Lifting accessory commonly used in industrial and construction settings.
Product Features: | |
Material: | Polypropylene/Nylon/ PET/PP mixed |
Diameters: | from 10mm - 90mm |
Color: | Colorful |
Specification: | 3-strand rope/8-strand rope |
Advantage: | High strength, Low elongation, Wearing resistance, Anti-corrosion. |

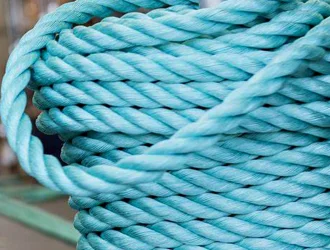

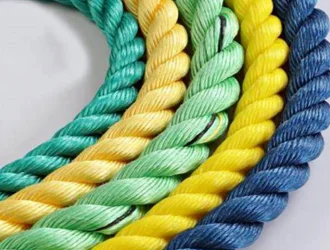

Superdan® 3-strand rope | ||
DIA. | Weight | Tensile strength |
(mm) | (kgs/200m) | (Ton.) |
10 | 9.6 | 1.6 |
14 | 18.8 | 3 |
18 | 30.8 | 4.7 |
20 | 38 | 5.6 |
26 | 63.8 | 9.4 |
28 | 73.6 | 10.6 |
30 | 85.2 | 11.7 |
36 | 122 | 16.6 |
38 | 135 | 18.2 |
40 | 152 | 19.8 |
48 | 218 | 27.8 |
50 | 236 | 30 |
52 | 256 | 32.3 |
55 | 286 | 35.6 |
60 | 340 | 42 |

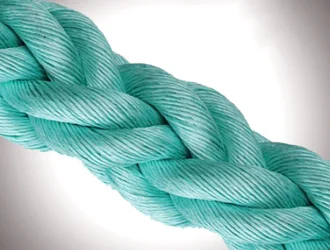

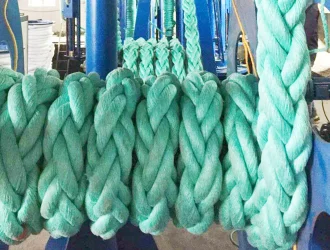

Superdan® 8-strand rope | ||
DIA | Weight | Tensile strength |
(mm) | (kgs/200m) | (Ton.) |
40 | 158 | 28.4 |
48 | 229 | 39.8 |
50 | 249 | 42.5 |
55 | 301 | 50.9 |
60 | 358 | 60.5 |
65 | 420 | 70.4 |
70 | 487 | 82.2 |
75 | 559 | 93 |
80 | 638 | 105.6 |
85 | 721 | 118.8 |
90 | 807 | 133.4 |
