Marine Hardware Stainless Steel Bruce Anchor For Ship Yacht
| Product Features: | |
| Material: | 316 stainless steel |
| Precision casting: | Colloidal silica |
| Weight (kg): | 1kg- 80kg |
| Surface: | Mirror polished |
| Size: | 1kg/2kg/3kg/5kg/7KG/7.5kg/8KG/10kg/15kg /20kg/25KG/30kg/40KG/50kg/60KG/80kg |
| Certificate: | ISO9001/SGS/CE |
Description

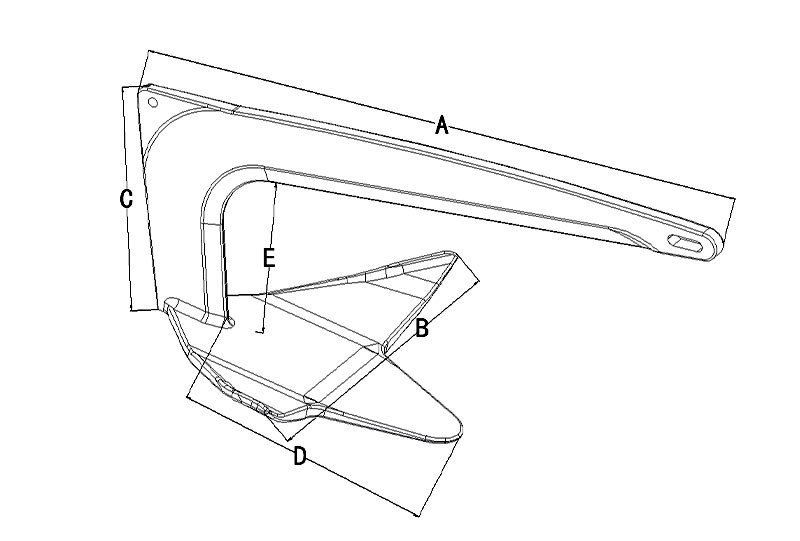

| Especification | A mm | B mm | C mm | Dm | E m |
| 1KG | 274 | 174 | 100 | 114 | 114 |
| 2KG | 350 | 220 | 125 | 140 | 95 |
| 2.5KG | 400 | 230 | 150 | 148 | 114 |
| 3KG | 391 | 254 | 145 | 164 | 103 |
| 5KG | 470 | 305 | 180 | 195 | 155 |
| 7.5KG | 538 | 345 | 200 | 222 | 140 |
| 10KG | 593 | 388 | 225 | 246 | 160 |
| 15KG | 677 | 440 | 260 | 280 | 183 |
| 20KG | 745 | 520 | 288 | 280 | 200 |
| 25KG | 805 | 560 | 305 | 300 | 215 |
| 30KG | 855 | 585 | 335 | 320 | 230 |
| 40KG | 923 | 634 | 384 | 353 | 257 |
| 50KG | 1000 | 685 | 380 | 385 | 260 |
| 80KG | 1110 | 755 | 460 | 420 | 290 |
