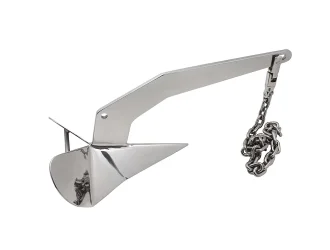

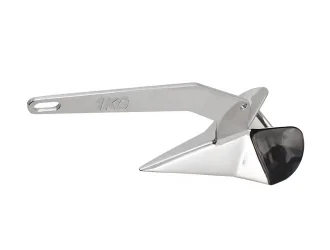

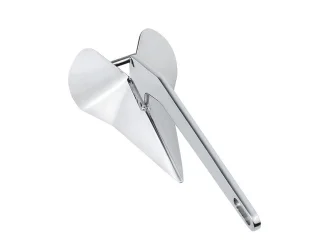

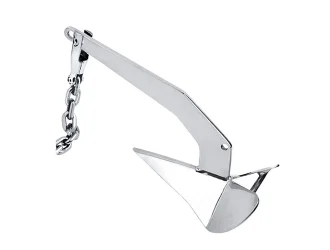

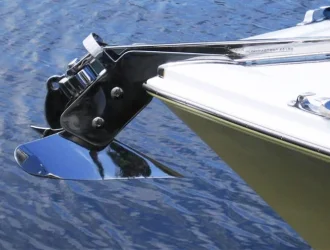

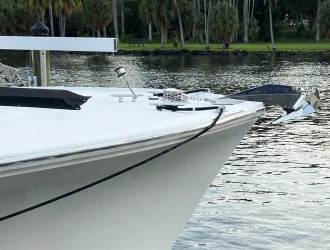

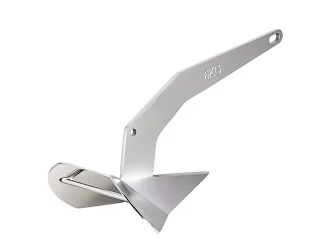

Delta Anchors Marine Stainless Steel For Boat Yachts
| Product Features: | |
| Material: | 316 stainless steel |
| Precision casting: | Colloidal silica |
| Weight (kg): | < 80kg |
| Surface: | Mirror polished |
| Size: | 3kg/5kg/7KG/7.5kg/8KG/ 10kg/15kg/20kg/25KG/ 30kg/40KG/50kg/60KG/80kg |
| Certificate: | ISO9001/SGS/CE |
Description
| Specification | A mm | B mm | C mm | D Mm | E mm | F mm |
| 3KG | 440 | 200 | 180 | 110 | 130 | 310 |
| 4KG | 518 | 220 | 195 | 120 | 145 | 310 |
| 5KG | 580 | 260 | 240 | 145 | 150 | 410 |
| 6KG | 580 | 260 | 240 | 145 | 150 | 410 |
| 7KG | 580 | 260 | 240 | 145 | 150 | 410 |
| 7.5KG | 610 | 270 | 285 | 150 | 200 | 440 |
| 8KG | 655 | 277 | 285 | 150 | 196 | 470 |
| 10KG | 680 | 280 | 296 | 160 | 210 | 480 |
| 15KG | 810 | 340 | 315 | 190 | 255 | 440 |
| 20KG | 840 | 365 | 339 | 200 | 270 | 465 |
| 25KG | 950 | 395 | 433 | 230 | 295 | 600 |
| 30KG | 1035 | 420 | 460 | 250 | 315 | 650 |
| 40KG | 1115 | 460 | 510 | 270 | 335 | 680 |
| 50KG | 1200 | 487 | 540 | 290 | 370 | 720 |
| 60KG | 1270 | 595 | 515 | 270 | 390 | 750 |
| 80KG | 1470 | 660 | 590 | 310 | 470 | 770 |
