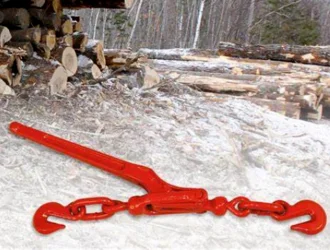

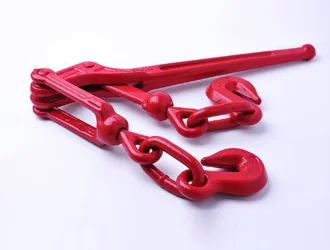

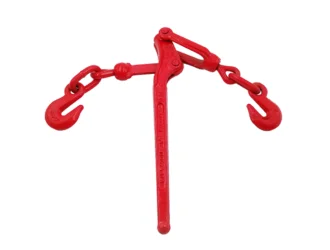

L150 Standard Lever Type Load Binder with Hook
| Product Features: | |
| Application: | For securing cargo during transportation |
| Material: | Alloy steel,Carbon steel S355 or S255J2，Forged alloy steel |
| Specification: | 8mm-16mm |
| Surface: | Hot dip galvanizing ,Powder coated |
| Color: | Colorful paint |
| Standard: | EN 12195-3,ISO9001 |
Description
The main advantage of using a heavy duty type load binder is that it can handle larger and heavier loads, providing greater security during transportation. This can help to prevent accidents or damage to the cargo or vehicle.
Heavy-duty type load binders are also typically more durable and long-lasting than standard load binders, making them a good investment for companies that frequently transport heavy loads.

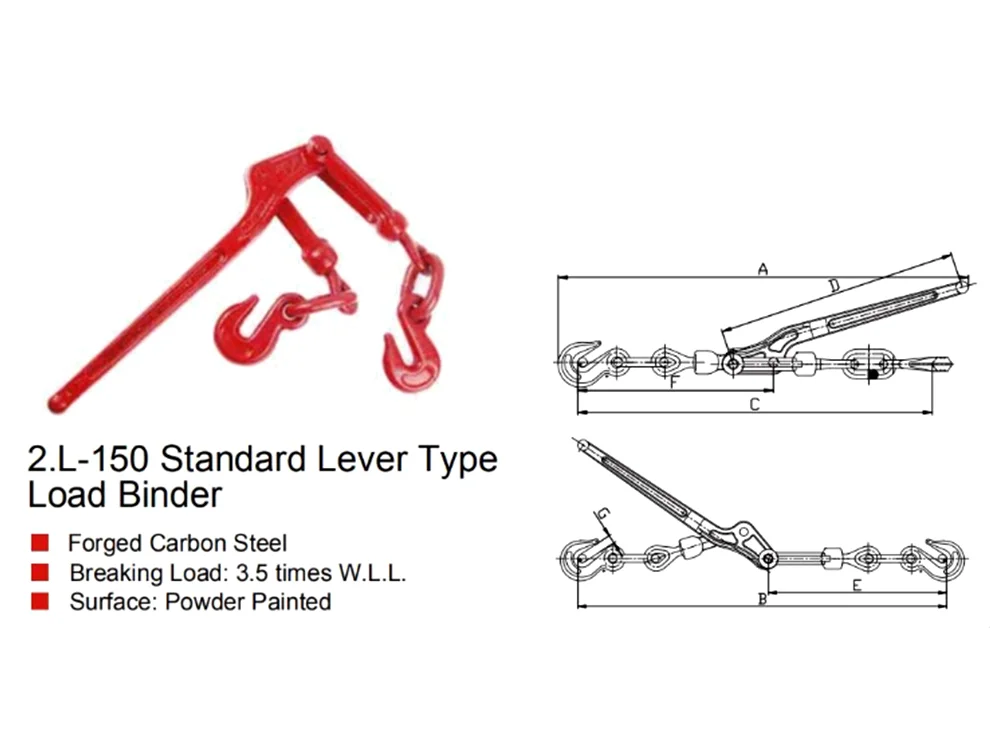

| Size | WLL (Ton.) | Dimensions(mm) | ||||||||||||
| - | - | A | B | C | D | F | G | I | K | L | N | S | A1 | A2 |
| 8mm | 4 | 4.87 | 11 | 34 | 18 | 386 | 341 | 21 | 36 | 255 | 14 | 18 | 589 | 757 |
| 10mm | 6.3 | 5.2 | 12 | 34 | 20 | 386 | 342 | 22 | 36 | 255 | 14 | 20 | 606 | 774 |
| 13mm | 10 | 8.23 | 15 | 37 | 26 | 386 | 369 | 25 | 36 | 260 | 14 | 25.5 | 693 | 866 |
| 16mm | 16 | 10.73 | 19 | 37 | 30 | 386 | 377 | 29 | 36 | 260 | 14 | 30 | 739 | 912 |
