Application:Mooring,Marine,Ship
Application:Mooring,Marine,Ship
Application: Aquaculture, Fish farm mooring
AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Application:Lifting accessory commonly used in industrial and construction settings.

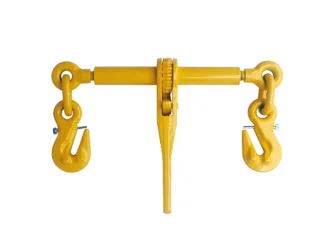

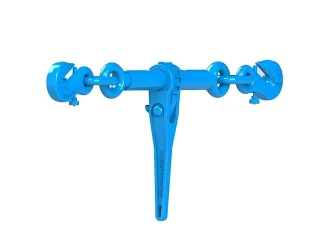

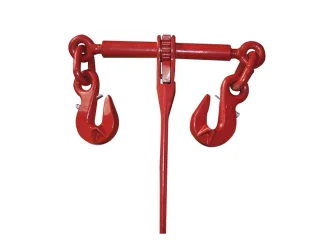

Product Features: | |

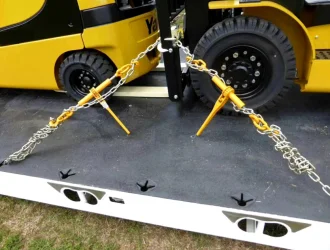

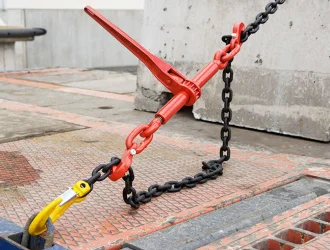

Application: | For securing cargo during transportation |
Material: | Alloy steel,Carbon steel S355 or S255J2,Forged alloy steel |
Surface: | Hot dip galvanizing,Powder coated |
Color: | Colorful paint |
Standard: | EN 12195-3,ISO9001 |

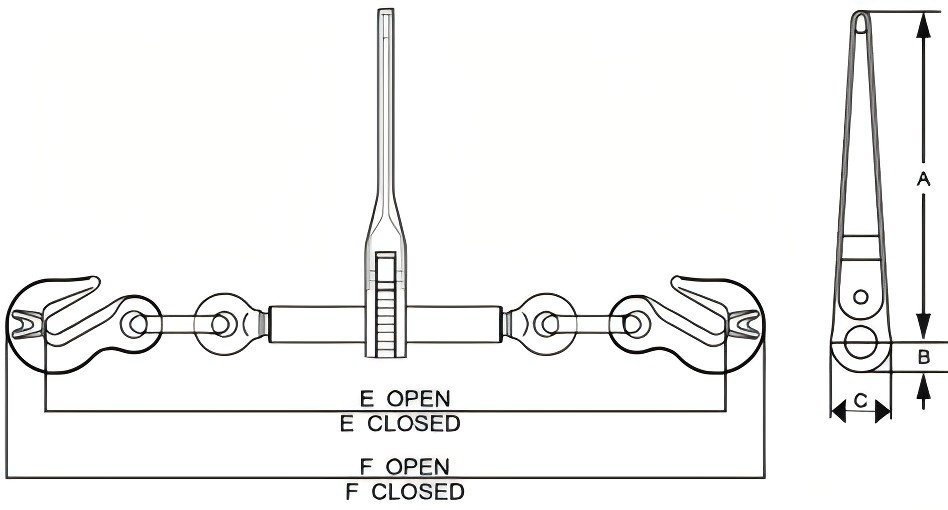

Item | Size | WLL | Weight | Dimensions (mm) | |||||||||
No. | (mm) | (Ton) | (Kg) | B | C | D | F | G | I | K | L | N | S |
WRB808 | 8 | 4 | 4.87 | 11 | 34 | 18 | 386 | 341 | 21 | 36 | 255 | 14 | 18 |
WRB810 | 10 | 6.3 | 5.2 | 12 | 34 | 20 | 386 | 342 | 22 | 36 | 255 | 14 | 20 |
WRB813 | 13 | 10 | 8.23 | 15 | 37 | 26 | 386 | 369 | 25 | 36 | 260 | 14 | 25.5 |
WRB816 | 16 | 16 | 10.73 | 19 | 37 | 30 | 386 | 377 | 29 | 36 | 260 | 14 | 30 |
